Some coil calculations related to the ID-3LA

So continuing on from last post, I did some calculations to see if I could eek out more distance from the ID-3LA.

Dusting off my old EE knowledge, and reading on the web (I went to OSU and we all used the Kraus book -- but mine is locked up somewhere in a basement with the Art of Electronics), I came up with the following.

My main references were:


The question I was trying to answer was: "If I just build a bigger coil, how much distance can I get?"

First, I used http://sagemath.org to solve for the magnetic (B) field as a function of coil radius (a), distance(r), turns (n), and current (I).  This gave me:





The values I observed for the actual coil as a maximum read distance were:

Name Value                    Units
I    0.0369927705564946       Amps
n    71                       turns
a    0.06                     m
u    (4.00000000000000e-7)*pi Henry/meter


So, I have a B-field of 3.74583992365717e-6. I'm going to take that as the required B-field.
Graphing the above equation for different values of coil radius, gives this graph:




If you believe this, it basically says that increasing the radius of the coil will increase the B field a tiny bit. But not enough for my needs. Note that as you increase the radius, you need to wind more turns to maintain the required inductance for the ID-3LA. This is good from the standpoint of generating a B-field, but bad from a cost standpoint.

So, my belief is that to significantly increase the distance, I'm going to need more current or more inductance. Here's a graph with some options:



So can I design a circuit with 10 * the current (or close) and a radius of 0.25? Or maybe more current and more inductance? I'll have to look into it.

If anyone comes across this and sees an error (which wouldn't surprise me), please let me know.

(For more detail, I've attached a pdf of the sage calculations here.)


Monday, December 30, 2013

Building a coil for the ID-3LA

Partially to put my thoughts in order and also for others who might be trying this…

Here’s a list of steps that I performed to build a coil for the ID-3LA which a bought from Sparkfun (here). I found a data sheet online here.  This really is pretty easy to do and since my EE skills are really old and rusty, fun.

Decide on what wire to use. I built two: one using 30AWG magnet wire from my local Radio Shack and also 26AWG magnet wire that I got from my local Electonic Supply. Why 26AWG? According to the Microchip AN678 application (here), anything above “larger” than 26AWG (e.g. smaller numbers but bigger wire), has a lot loss do to skin effect. See the section titled “Wire type and ohmic losses.” I was hoping to get more distance out of the 26AWG coil.

Calculate coil radius and number of turns.  I’ve seen a variety of calculations and suggestions for starting points (including in the ID-3LA data sheet). I built my first coil 30AWG coil using the information in the ID-3LA data sheet in section 12. 6cm radius and 71 turns. I built my second coil with 26AWG and used the calculator at www.circuits.dk for the same size and the inductance from the ID-3LA data sheet. Based on measuring my first coil, width was about 2mm and height was about 2.5mm.

Output from circuits.dk

Build the coil. I measured 6cm for a center point and used finishing nails to make a "form" (see picture). Originally I used some trim coil to "smooth out" the circle, but the wire kept slipping under the trim coil. I decided it didn’t help that much so I gave up. I’m sure there’s a way to make a more tightly packed coil, but I don’t know how much you gain. I basically wound and counted the required number of turns. When I reached the required number of turns, I stopped and taped the coil with electrical tape. I then wound two turns more to allow removal of loops in the tuning process. I taped the whole coil, with the turns that could be easily removed, in a different color electrical tape.
Rig to wind coil
Insert into circuit. To remove the insulation off the magnet wire, I used a lighter and then cleaned with a bit of steel wool. Seemed to work acceptably though I’ve seen other suggestions. My magnet wire did not appear to have “solderable” insulation. For the 30AWG wire, I attached some 22AWG solid conductor wire. To do this, I tinned the 22AWG wire and tried to tin the 30AWG magnet wire (which didn’t work to well). Then I wrapped the 30AWG magnet wire around the tinned 22AWG wire and heated. Seemed to work but there’s got to be a better way. For the 26AWG wire, I inserted the magnet wire directly into the breadboard.
Completed circuit

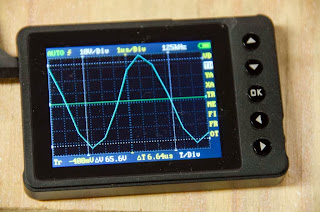

Tune and test.   I hooked my scope (a DSO Nano) up across the leads of the coil and started measuring. You can start to see the limitations of a $90 oscilloscope. ;) One thing I noted was a sine wave at ~360 Hz (picture). I didn’t investigate this. When I set the time division to 1 microsecond, the 125khz signal shows up clearly.

360Hz Harmonic

12khz Signal

Note:  I tried measuring with Vrms with my Fluke 115.  It gave me a Vrms of 1.5V and a frequency of 32kHz.  Maybe it's my wall-wart power supply?

With the 30AWG wire, my Vpp was 30.8V. I was able to read a tag (used a token hooked to an Arduino) but the range was very low. I remove a coil at a time and was able to increase the range up to Vpp of 109V — and at that voltage, couldn’t read the coil. I didn’t investigate this but theories would be Q was too high so that the influence of the token really had a negative effect or maybe this was more voltage than the ID-3LA could handle. I added one coil back and got a Vpp of 76V. With this, I got a read distance of about 2 inches.
30mm 125khz token from Trossen Robostics
With the 26AWG wire, I was able to get a Vpp of 77.4V and a read range of 6.5".  Is this about the max that can be gotten out of the ID-3LA?

Note:  Some have suggested tuning by measuring the current consumption of the ID-3LA.  I didn't try that.

For curiosities sake, I decided to order and directly measure the inductance of the 26AWG coil with a Sinometer UT58D.  It gave me an inductance of 1.332mH, an Rdc of 3.9 ohms, and a capacitance of -37.4 micro F.  I was pleasantly surprised that the inductance closely matched about what I wanted.

The bottom line though was about 6.5" of read distance.  I'm hoping to get about 16".  So, my next project is to do a little research on how to increase the read distance.  Supposedly increasing the radius of the coil can increase the distance.  But before I go to the extra effort of winding another coil, I'm going to do some calculations to see if this would actually provide benefits.  I suspect, and others have noted, sooner or later its about power.  If that's the case, I'll need to build my own circuit.

Open questions:
Why does the Fluke read values so differently?
Should I have fine-tuned with a capacitor?
Why did the ID-3LA fail to read when I tuned Vpp up over 100V?
What really is the best way to strip the insulation off of the magnet wire?

Next step:  Try to remember enough emag to perform some calculations and investigate the feasibility of increasing the coil size.
